Software Description
Power your teams’ creativity with the automation, collaboration, and machine-learning features of AutoCAD software. Architects, engineers, and construction professionals use AutoCAD
Design and annotate 2D geometry and 3D models with solids, surfaces, and mesh objects
Automate tasks such as comparing drawings, replacing blocks, counting objects, creating schedules, and more
Create a customized workspace to maximize productivity with add-on apps and APIs
New in 2024
Additional enhancements
PDFSHX System Variable: Set PDFSHX to 2 to store text objects that use SHX fonts as hidden text when the drawing is exported to a PDF. This makes the text searchable and selectable in the PDF.
Sheet Set Manager Improvements (Web): Below is a list of improvements that have been made to the Sheet Set Manager for Web since the previous release.
Automatic sheet set lock management
Multiple sheet selection for publishing
Ability to publish to a multi-sheet PDF or individual PDF for each sheet
Control over the PDF name and location
Option to overwrite existing files during publish and eTransmit
Control over the eTransmit file name and location
Control over the location for new sheets
Open Sheet Set button added to the palette
3D Graphics: Below is a list of improvements that have been made to the Shaded (Fast) and Shaded with Edges (Fast) visual styles.
Support for Map 3D and Civil 3D
Large coordinate system support
Selection (Fence, Lasso, Polygon)
Paper space support
Point cloud support
Line weights
Dimming of Xrefs and locked layers
General stability, visual fidelity, and performance improvements
2D Graphics: Below is a list of improvements that have been made to the 2D graphics system.
Pan performance is improved for drawings with raster images or wipeouts
Display performance is improved for trace background, Markup Import and Markup Assist, and ViewCube
Layout switching performance Improvement
Note: Turn on hardware acceleration for better performance and responsiveness in AutoCAD.
windows 10 & 11 Compatible
Yes
surface laptop se compatible
No
Managed Installer Required
Yes (Not Recommended)
AutoDesk AutoCAD 2024
AutoCAD 2024 has multiple installer types in order to create the WIN32 deployment package you will need to create a separate installer if you are using the Network License Manager version. To assist with this Autodesk has provided a custom installer packaging system that allows you to specify the installation type. Please see the photos below.
AUTOdesk AutoCAD
Repackaging Status: Repackaging Required
Repackaging Guidance
A Separate Guide is available for guidance on repackaging applications using the intunewin32 repackager. please click the button below for access to that guide and continue below once complete.
Intune Deployment
Now that the application has been repackaged it will need to be imported and deployed via Intune. Please use the application deployment guidance below to successfully deploy the application. test and edit as needed.
Application information
Name
Autodesk AutoCAD 2024
Description
At ETS, our assessments, learning solutions and pioneering research help students, educators and employers clearly see the next step on their path to new possibilities. ETS Workstation is used to assess student performance by locking the device into a secured testing browser.
Publisher
Autodesk
Category
Development & Design
Information URL
Developer
Autodesk
Owner
Your Organizations name
Logo
Program
Install Command
image\Installer.exe -i deploy --offline_mode -q -o "image\Collection.xml" --installer_version "1.39.0.174"
Uninstall Command
msiexec.exe /uninstall {28B89EEF-7101-0409-2102-CF3F3A09B77D}
Install Behavior
System
Device May Restart Parameter
App install may force a device restart
Install Codes
Keep Defaults

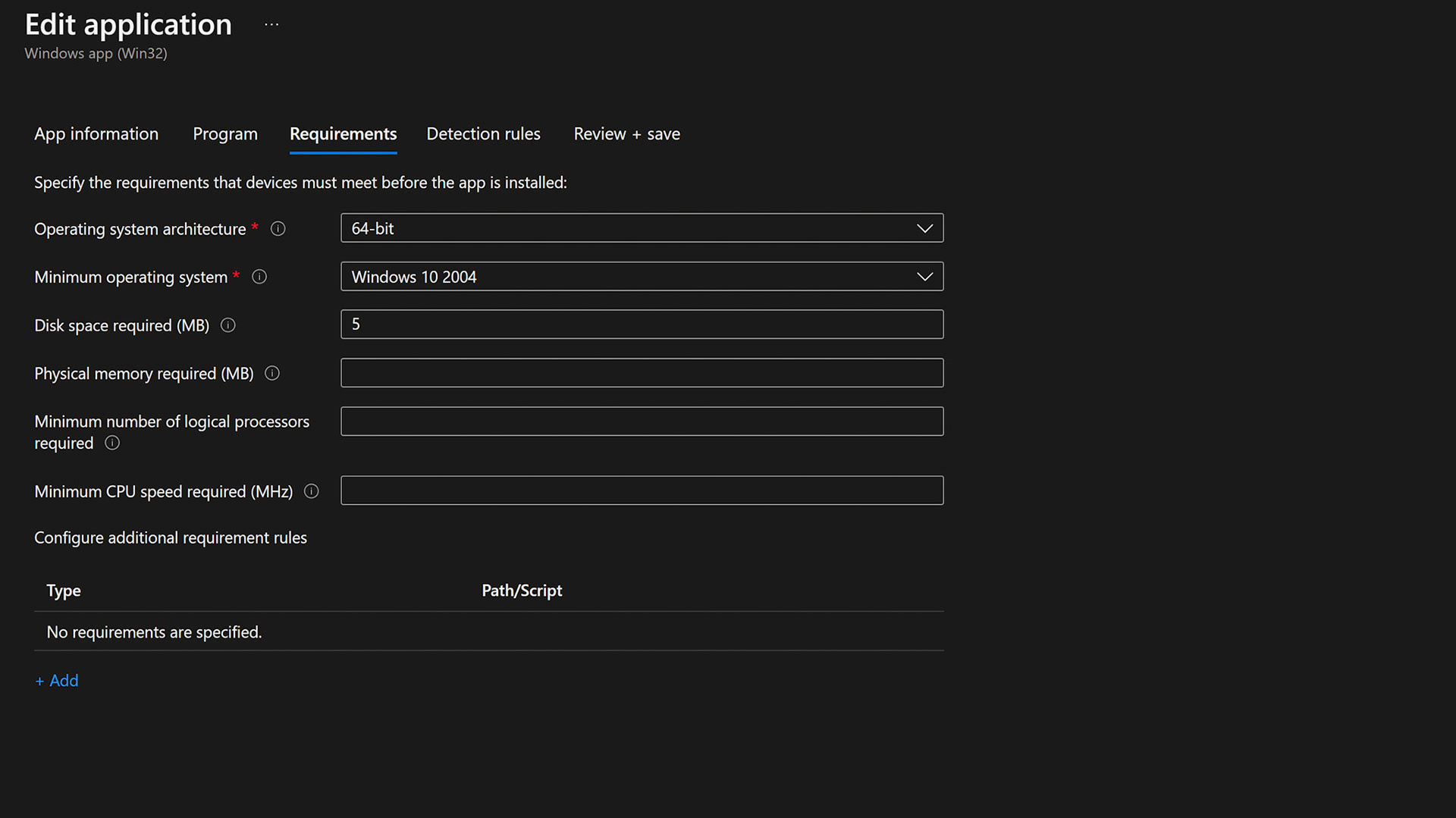

Requirements
Operating Systems Architecture
64-Bit
Minimum Operating Systems Architecture
Windows 2004
Disk Space Required
3000
Detection
Rules Format
Manually Configure Detection Rules
Rule Type
MSI
MSI Code
MSI {28B89EEF-7101-0409-2102-CF3F3A09B77D}
Associated with 32bit app on 64bit client
No
Dependencies Required
None

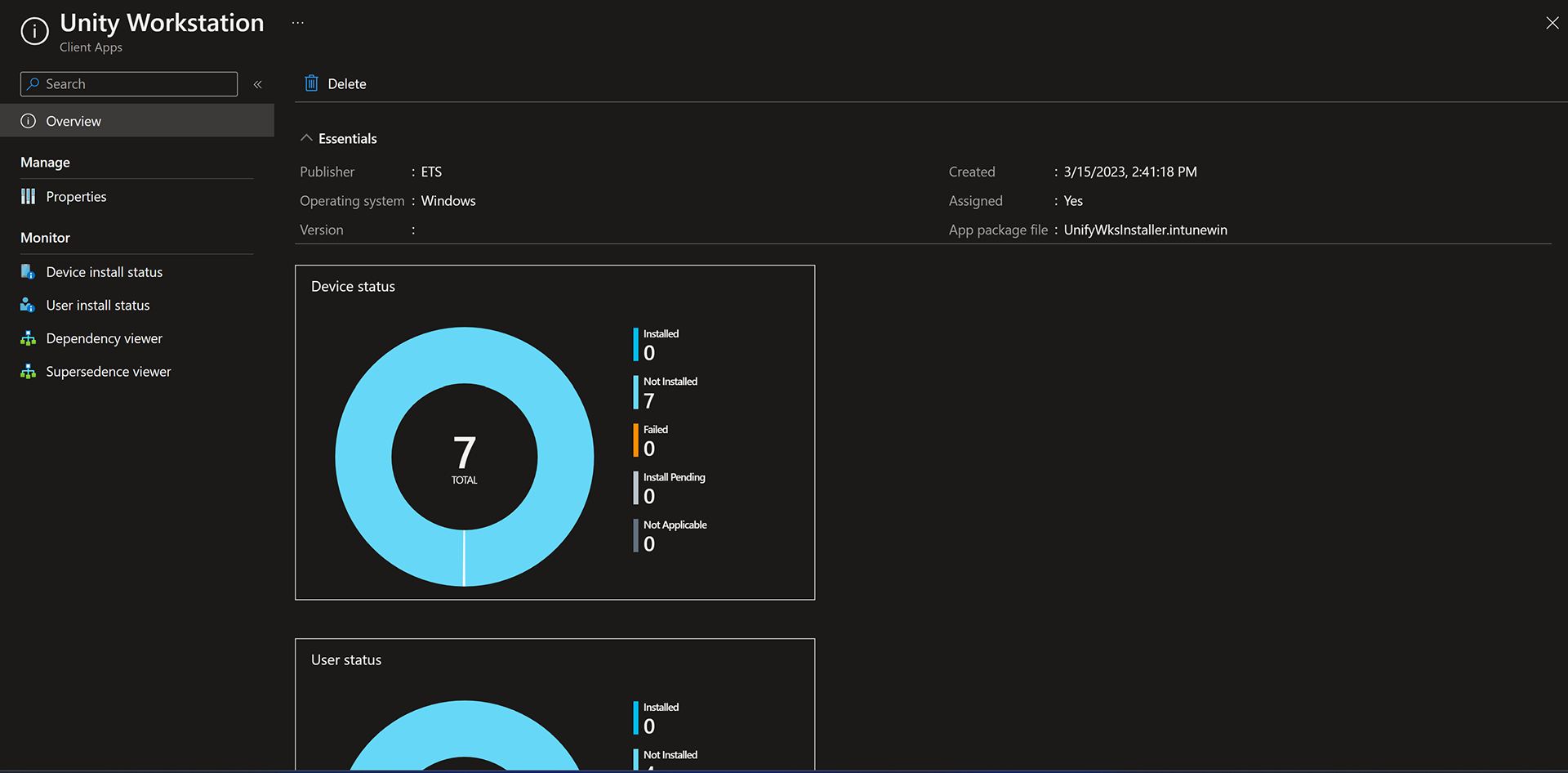

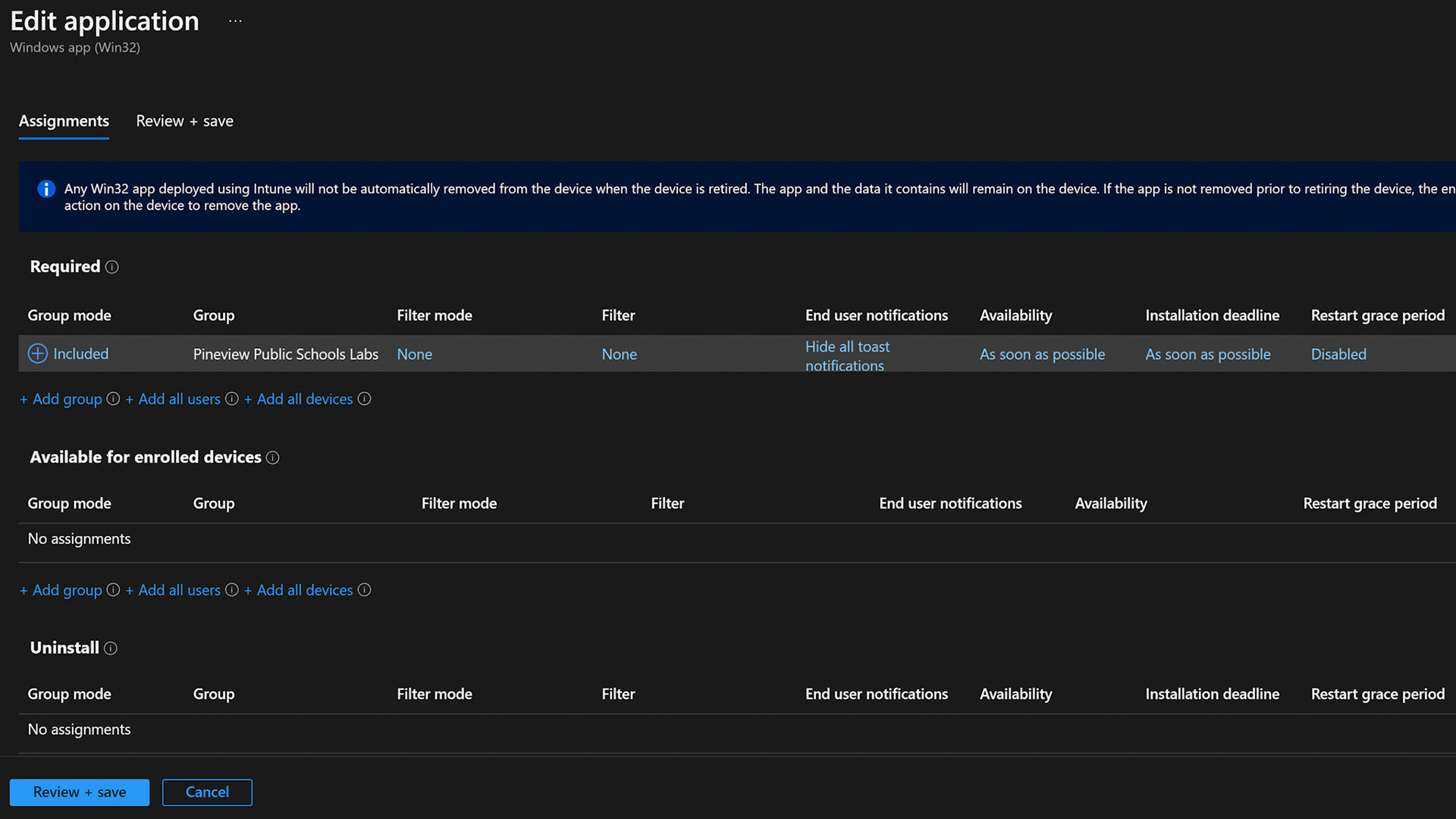

Deployment Monitoring
Now that the application has been successfully uploaded and deployed, we can monitor the installation status on the main overview page.
Deployment Complete
We hope you found this guide helpful
